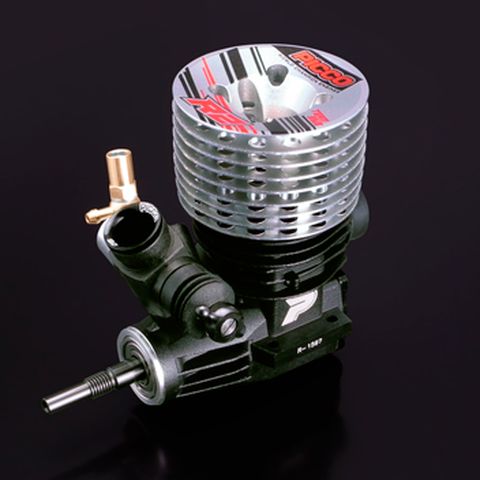

PICCO R2-3518

PICCO R2-3518

Bestellung PICCO Motor PIC9290

Bestellung PICCO Motor PIC9291

After the success of the R1 platform, we are proud to introduce its evolution: the R2-3518. We worked alongside with our team in order to develop the R1 base and the outcome is a big improvement in order of power band and stability. The flow of fresh charge has been improved with new cylinder port shaping and a completely new crankshaft design. The shaft remains DLC coated, while the bore and stroke ratio have also been changed slightly compared to the R1.

The R2-3518 features the latest crankcase design that provides an improved stiffness and therefore a more stable performance at every temperature, reducing the flex. The crankshaft is treated with a Diamond-Like Coating in order to prevent oxidation and wear of the pin, and works on a rear ceramic Swiss-Made bearing. The carburetor features a double bottom-end adjustment for the finest of tunings.

PICCO R2-3518

Technische Daten:

7 ports hard chromed sleeve

Piston CNC machined from billet

14mm DLC balanced shaft with silicone insert

Knife edged lightweight aerodynamic con-rod

Low CG cooling head

14mm ceramic Swiss-made main bearing

Composite 3-needle slide carburetor

Displacement: 3,49cc

Bore: 16,25mm

Stroke: 16,80mm

Output: 2,95hp @ 38,000rpm
