Beschreibung

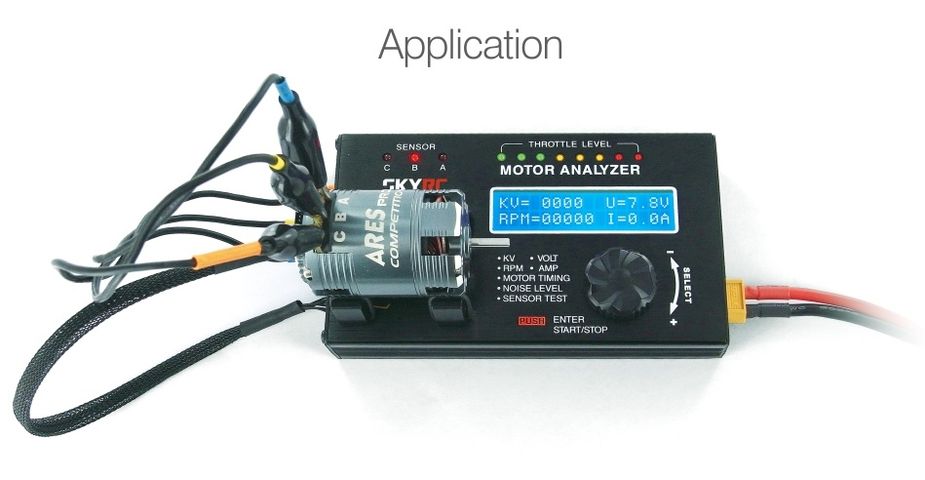

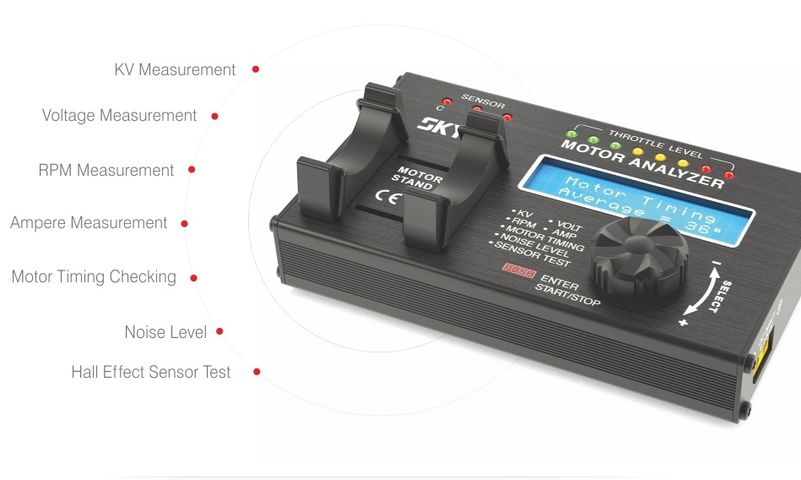

SkyRC 500020 Brushless Motor Analyzer

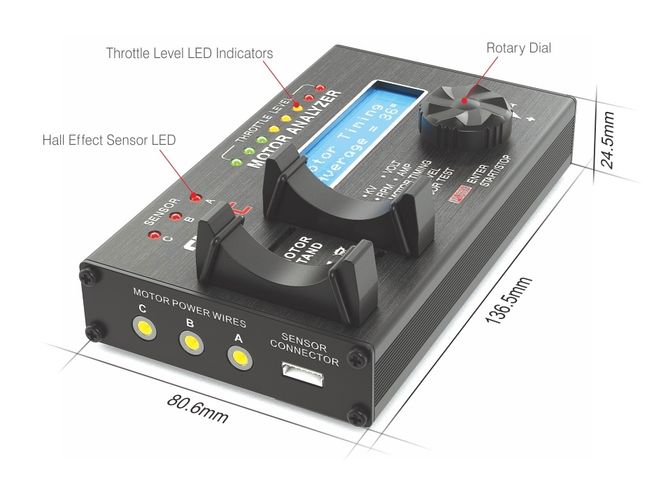

-Dimersions: B80.6mm, L136.5mm, H24.5mm
– Net Weight: 282gram (Without Cabel)
– Input Voltage: 7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)
– LCD Display Screen: Blue Backlight Background, White Text, 16 Characters X 2 Lines
– KV Value Accuracy: +/- 3%
– Motor Timing Accuracy: +/- 4%
– Motor Timing Range: 0-70°
– Noise Level Measurement Range: 60dB – 120dB
– Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)
Current Drawn Less Than 30A at 8.4V Without Loading
