Beschreibung

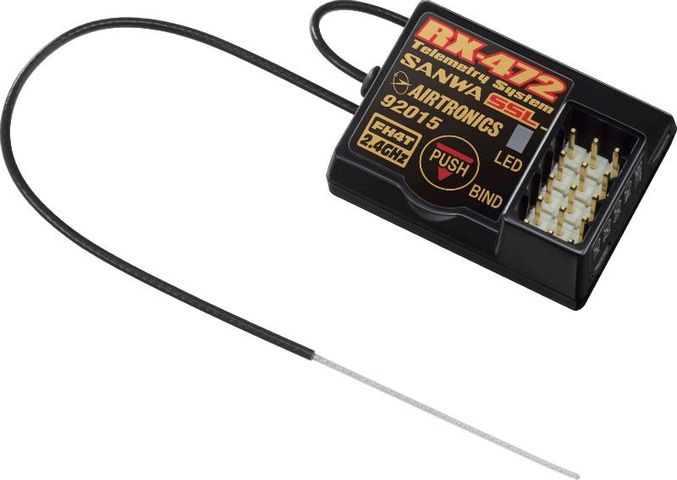

SANWA RX-472 Telemetrie / SSL Empfänger SANWA SURFACE CH4 2.4GHZ FH4/FH3 (SSL FUNKTION)
SANWA SAN107A41117A
– 2.4GHz FHSS4/FHSS3 Spread spectrum system 4ch
– Sanwa Synchronized Link ( SSL ) function support
– Sanwa Super Response (SSR) support
– Lightest receiver in class
Frequency: 2.4GHz FHSS4/FHSS3
Channel: 4ch
Nominal Input Voltage: 4.8~7.4V
Dimensions: 30.0×23.3×14.0mm
Weight: 6.6g
Compatible radio: M12, EXZES Z, MT-4 ( SSL not support )
SSL Function (Sanwa Synchronaized Link) System
From using both of “RX-472” and “Super Vortex Zero”, Drivers operate
“Code AUX Function” which is included on M12 & EXZES-Z
and can adujust setting of equipment directly and quickly from Radios.
In case of using SSL System, Drivers don’t need to use Setting Card or PC.
And also, Telemetry data can be sent to Radios without using any Sensors.
In case of using MT-4 with both of “RX-472” and “Super Vortex Zero”,
SSL Function is not responded, but Telemetry data can be sent to Radios
without using any Sensors.
Notice
Dimensions on product specification only shows the size of receiver itself and it excludes length of the antenna and crystal projection.
To maintain the reception of device, please do not cut the antenna. For additional information, please read official manual for each product.
