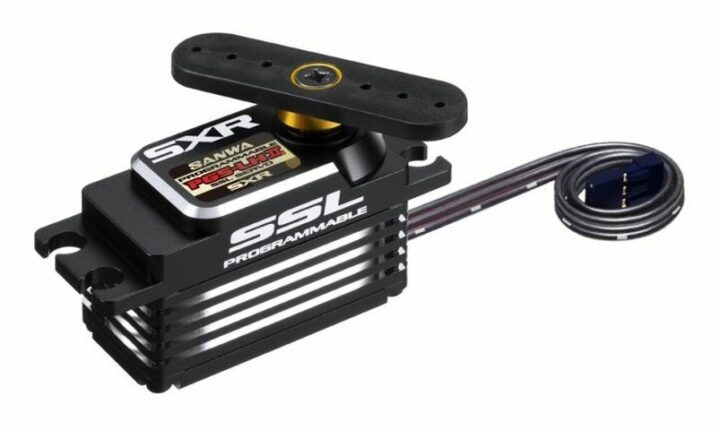

PGS-LH II LowProfile Type Servo 0,09sec/15,6kg

PGS-LH II LowProfile Type Servo 0,09sec/15,6kg

CHF 174,00

Beschreibung

PGS-LH II LowProfile Type Servo 0,09sec/15,6kg

SANWA 107A54479A

SRG PGS-LH II LowProfile Type Servo 0,09sec/15,6kg SANWA Metall-Getriebe für 1:10 Elektro

– FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE

– SSL-COMPATIBLE PROGRAMMABLE SERVO

– Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)

Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

– PGS SETTING GEAR-COMPATIBLE

– SUPER RESPONSE (SSR) MODE-COMPATIBLE

– HIGH RESPONSE (SHR) MODE-COMPATIBLE

– Li-Po 2 CELL-COMPATIBLE

– LOW PROFILED

– HIGH SPEED TYPE

– BRUSH LESS MOTOR

– FULL ALUMINUM CASE

– FULL METAL GEAR (Strengthening Gears)

– AL HEAT SINK

– Black Harness

Speed:

– 0.09 sec/60 (7.4V)

– 0.11 sec/60 (6.0V)

Torque:

– 15.6 kg/cm (7.4V)

– 12.8 kg/cm (6.0V)

Dimensions:

– 40.2 x 20.5 x 26.0 mm

Weight:

– 53.0 g

– Programmable Servo to be compatible with SSL & Telemetry at Launch

– Setting Adjustment by wireless from Radio

– Setting Adjustment to connect Servo with Setting Gear

– Regarding Temperature, Current, Voltage and Volume Position on Servo inside,

Telemetry-transmission can be passed to Radio.

Initial Setting on Setting Gear is necessary.

Setting Items

– SSL-CH (SSL Channel Setting) ?STRETC (Stretcher Adjustment) ?BOOST (BOOST Adjustment)

– D-Band (Dead Band Adjustment) ?MV-MID (Middle Torque Adjustment)

– MV-END (Later Torque Adjustment) ?BREAK (Break Adjustment)

– MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)

– MAX-PW (MAX Duty Adjustment)

– Setting Gear is necessary for ?setting.

PGS-Servo Explanation
